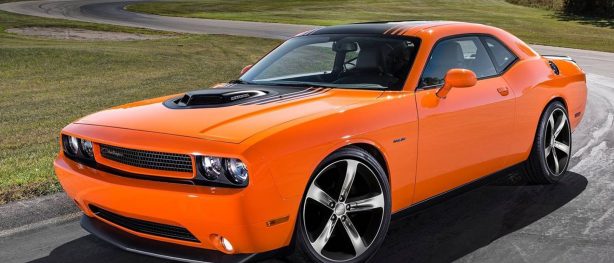

The process of developing a performance part like a Mopar® Shaker Hood is a complicated and involved one, according to Nicho Vardis, Mopar Design Manager. “It starts with a 2D sketch of the product that gives everyone an idea of what the end product will look like. We then have a discussion with engineers and planners to determine the feasibility of actually manufacturing the part.”
ANOTHER DIMENSION
The next step is to input the design into the computer and create a 3D surface model. From the 3D model, a Rapid Prototype is made. In the case of the Shaker Hood, a clay model was milled. To help engineers get an idea of what the part will actually look like, a material called DI-NOK is used. It’s a film or wrapping that comes in a variety of colors and simulates a painted surface. “It’s a very versatile material,” noted Vardis.
TWEAKS ALL AROUND
At this point, management gets involved and they review the part and make a determination on whether the part can be manufactured. They also get feedback from engineers. The model is then tweaked, based on input, until everyone is on board. The dimensions of the revised model are scanned and brought back into the computer.
One aspect that makes this process so unique is how the various groups work as a team and utilize seamless integration. By doing so, the Shaker Hood looks like it was designed when the vehicle was planned, whereas, an aftermarket part often looks like an afterthought.
AVAILABLE SHAKER HOODS AND KITS
2011-2014 CHALLENGER 5.7L
SHAKER HOOD KIT
Includes Aluminum Hood E-Coated – ready for paint, Trim Ring Kit, Underhood Shaker Decal and Washer Hose.
2011-2014, Challenger, 5.7L, P/N 82213396AB
NOTE: Use with Shaker Induction Kit P/N 82214110AB
SHAKER HOOD INDUCTION KIT
Includes Shaker Scoop, Base Plate, Cold Air Induction and Shaker Logos.
2011-2014, Challenger, 5.7L, P/N 82214110AB
NOTE: Use with Shaker Hood kit P/N 82213396AB
2015-2018 CHALLENGER 5.7L
SHAKER HOOD KIT
Includes Aluminum Hood E-Coated – ready for paint, Trim Ring Kit, Underhood Shaker Decal and Washer Hose.
2015-2018, Challenger, 5.7L/6.4L, P/N 82214312AB
NOTE: For use with Shaker Induction Kit P/N 82214479 – 5.7L or P/N 82214586AB – 6.4L (unfinished, to be painted to match vehicle).
SHAKER INDUCTION KIT
Includes Shaker Logo, Shaker Scoop, Base Plate and Cold Air Induction.
2015-2016, Challenger, 5.7L, P/N 82214479
NOTE: Use with Shaker Hood Kit P/N 82214312AB
2015-2018 CHALLENGER 6.4L
SHAKER HOOD KIT
Includes Aluminum Hood E-Coated – ready for paint, Trim Ring Kit, Underhood Shaker Decal and Washer Hose.
2015-2018, Challenger, 5.7L/6.4L, P/N 82214312AB
NOTE: For use with Shaker Induction Kit P/N 82214479 – 5.7L or P/N 82214586AB – 6.4L (unfinished, to be painted to match vehicle).
SHAKER INDUCTION KIT
Includes 392 Hard Badge, Shaker Scoop and Cold Air Induction.
2015-2016, Challenger, 6.4L, P/N 82214586AB
NOTE: Use with Shaker Hood Kit P/N 82214312AB
